Product Introduction

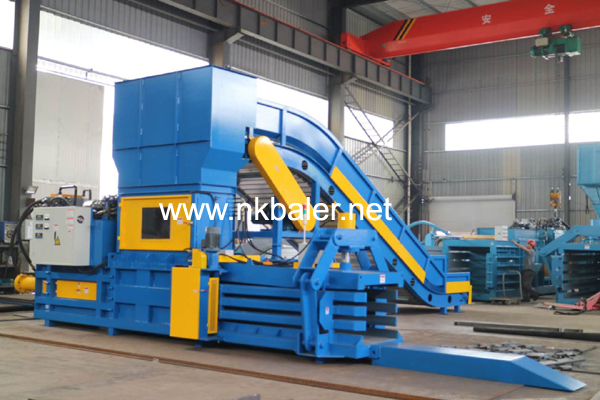

NKW160Q Carton Box Hydraulic Bale Press is an efficient packaging equipment. It uses advanced hydraulic technology and automatic bundle system. It has the advantages of simple operation and high efficiency. This machine is suitable for compression and packaging of various types of carton and cardboard, which can effectively improve work efficiency and reduce labor intensity. The machine structure is compact and covers a small area, suitable for use in warehouses, logistics centers and other places. It has stable working performance and reliable quality, which can meet the needs of different users. In addition, the machine also has the advantages of low noise and low energy consumption, which meets environmental protection requirements.Usage
The following is the characteristics of NKW160Q Carton Box Hydraulic Bale Press: 1. Efficiency: Adopt advanced hydraulic technology and automatic bundle system, which can quickly complete packaging and compression tasks. 2. Save space: the structure is compact, the area is small, and it is suitable for use in warehouses, logistics centers and other places. 3. Stability: It has stable working performance and reliable quality, which can meet the needs of different users. 4. Adjustable: You can adjust the pressure and bundle strength as needed to adapt to different packaging materials and sizes.Parameter Table
| Item | Name | parameter |
| mainframe parameter | Bale size | 1100mm（W）×1100mm（H）×～1600mm(L) |
| Material type | Scrap Kraft paper, Newspaper, Cardboard ,Soft Film， | |
| Material density | 600～700Kg/m3(Mositure12-18%） | |
| Feed opening size | 2400mm×1100mm | |
| Main motor power | 45KW+15kw | |
| Main cylinder | YG280/210-2900 | |
| Capacity | 12-15 ton /hour | |
| Main cylinder force | 160T | |
| Max. system working force | 30.5MPa | |
| Mainframe weight(T) | About 25 tons | |
| Oil tank | 2m3 | |
| Mainframe size | About 11×4.3×5.8M（L×W×H） | |
| Tie wire line | 4 line φ3.0～φ3.2mm3 iron wire | |
| Pressure time | ≤30S/ (go and back for empty load) | |
| Chain conveyor technology | Model | NK-III |
| Conveyor weight | About 7 tons | |
| Conveyor size | 2000*14000MM | |
| Conveyor motor | 7.5KW | |
| Cool tower | Cool tower motor | 0.75KW（water Pump）+0.25（Fan） |
